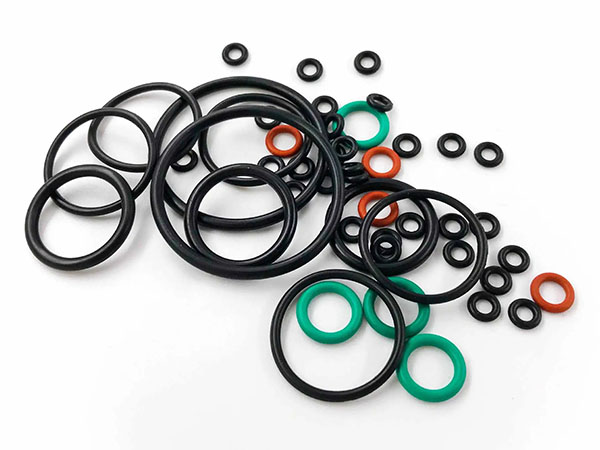

With the improvement of sealing performance requirements, there are now some new extrusion sealing rings, the cross-section shape is different from the traditional O-ring, but the working principle is similar, and it belongs to the extrusion sealing ring. By changing the shape of the section, these new seals improve some of the performance of the O-ring.

The X-shaped seal is an improved O-shaped seal, also known as the star seal, and its structure has four lips. The sealing ring is vulcanized by a jointless ring mold, and its cross section shape is approximately square. In terms of use and function, X-shaped seals are very similar to O-shaped seals, but X-shaped seals have superior sealing performance. Usually, X-shaped seals are made of various synthetic rubbers.

X seal ring is mainly used in dynamic sealing occasions, can also be used for static sealing. It is suitable for pistons, piston rods, plungers, etc. in bidirectional reciprocating motion, but also suitable for shafts and mandrels under swing, spiral and rotation conditions. The working pressure of the X-shaped seal does not exceed 40MPa, the working speed does not exceed 0.5m/s, and the working temperature is between -60 and 200 ° C (depending on the material choice). After special anti-friction treatment, the X-shaped sealing ring can provide better friction performance.

The advantages of the X-ring compared to the O-ring include:

does not flip or twist during reciprocating motion.

Less radial precompression is required, and therefore less contact stress and friction.

Between the protrusions can be filled with lubricating oil, which is conducive to reducing the coefficient of friction.

Contact stress distribution is uniform, less leakage.

Parting surface is located between the two lip edges, and the sealing effect is not affected by the flash.

The X-ring has excellent sealing effect and long life in the dynamic sealing situation, and can effectively replace the O-ring in the low-speed motion situation, and is also suitable for the sealing of the rotating shaft. The mounting groove of the X-ring can be used interchangeably with the groove of the O-ring.
